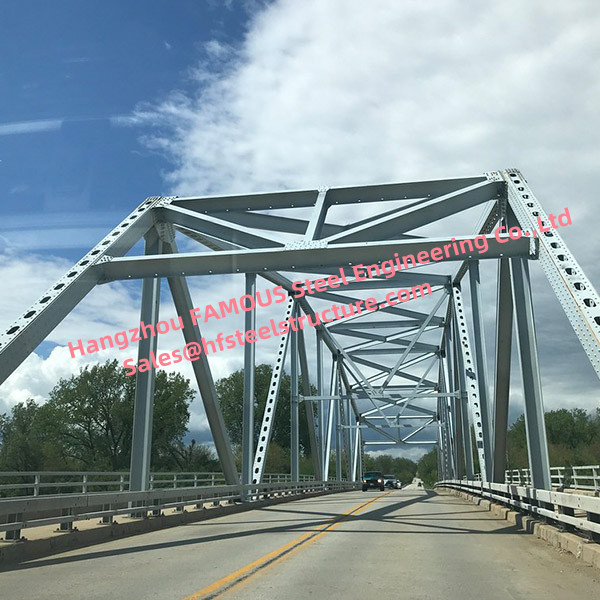

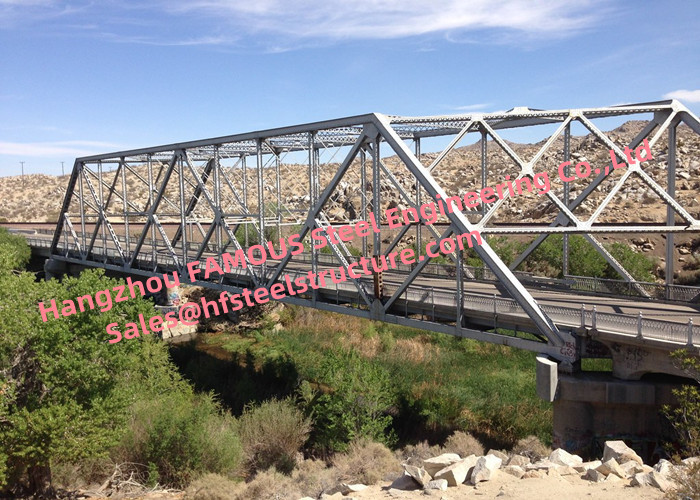

Modern Prefabricated Delta Modular Steel Truss Bridge Supporting For Highways and Railways
Description
Steel Truss Bridge is a kind of Assembly Bridge down supporting, mainly used for medium spans. The steel truss girder bridge is composed of truss members. Although the steel truss girder bridge is mainly bent and sheared, the truss members are mainly subjected to axial forces. Compared with the solid web, the thin web is used to replace the whole web, which saves steel and reduces the structural weight.
Specification
| Product Name | Specification of Compact 100 &200 Bailey bridge |
| Width | 7.3meter |
| Maximum span | 64meter single span and 200meter multi span |
| Bridge deck | Steel composit panel |
| Steel grade | Q345B (equivalent to ASTM A572) |
| Loading capacity | 20ton, 40ton truck etc, or HS20-44, HS25-44/Truck 20 |
| Corrosion | Hot dip galvanized |
| Advantages | Price effective and technical full analysis and supports |
Prefabricated Steel Bailey Bridges are normally built on site from a pre-engineered system of ready-to-assemble components. Utilizing standardized prefabricated components, Bailey bridges can be built to match a wide range of vehicular bridging applications. Because of their excellent versatility and overall value, thousands of Bailey bridges have been installed throughout the world.
Application
Spans from 3.6m to 31m and more - for highways, railways, pathways, bicycle racks, landscaping, etc
Standardized designs - as per Indian BIS a. RC standards and codes
Heavy live loads with high overfills - capable of supporting heavy freighter aircraft and mining haulers
Smooth approaches - from earth embankments due to soil overfill, does not require any approach slab
Low life cycle costs - traffic runs on overfill and not over an exposed bridge deck
Aesthetic structures - the true arch form is accentuated.
Features and Benefits
Standard highway loads and greater
Single and multiple lanes
Easy installation, even in rugged terrain
Shorter road closure times
No waiting for concrete to cure
Bearing plates and pads Curb or rail system
Our Company
Our experienced team is focused on your steel bridge project's success, from start to finish. Our proven ability to identify and overcome design inconsistencies, potential problems with erection, and shipping obstacles results in the fabrication of structural steel that is right the first time, helping you avoid costly construction delays.
Proper project coordination and efficient delivery of the structural steel to your bridge project is a key factor in its ultimate success. This is what gives us the leading edge.
From material purchase and tracing, planning compilation, drawing detailing, production arrangement, quality inspection, to on-going painting, packing and delivering, we have separated department to strictly control process, quality and traceability, so that the perfect Bailey/Belay/Baley Bridge can be made.
Finally we would like to emphasize that not like other companies, nearly all machining parts and mechanical accessories are manufactured in our own shop as we have so many wonderful machines and workers inside. In this way, the quality, cost and delivery time can be ensured which eliminates other exterior factors’ influence.
Warmly welcome all friends and clients from International market to visit us!
